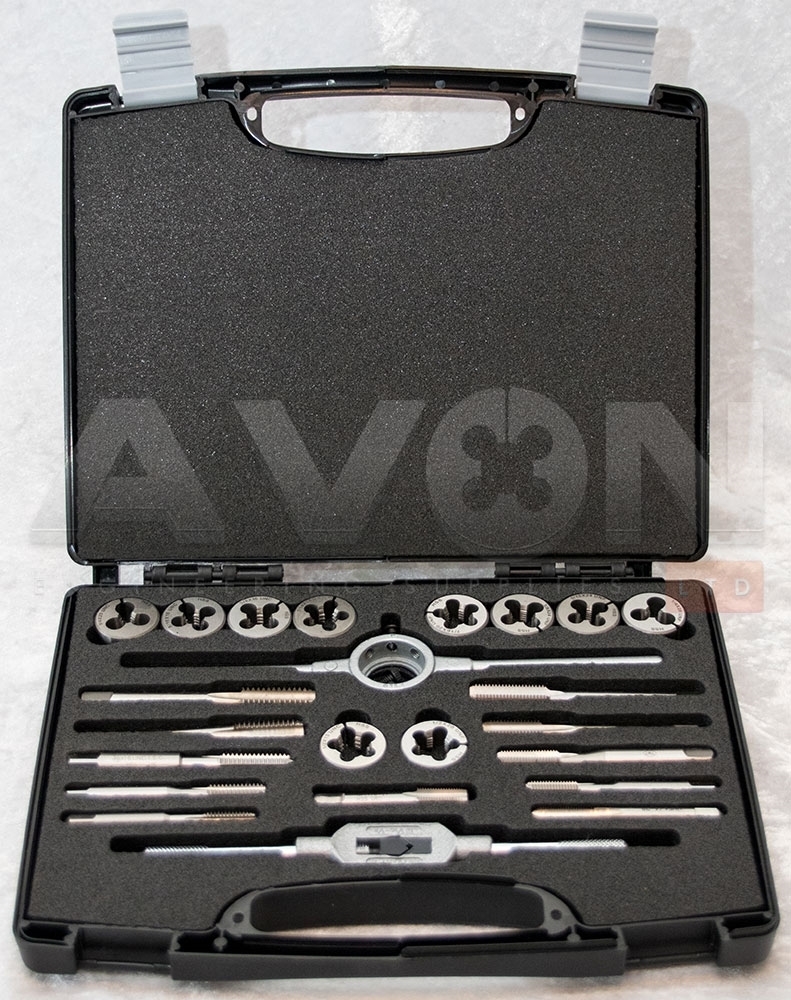

BSF/BSW Tap & Die Set (1/4" to 1/2") C/W All tapping drills.
24pc set containing 1 second tap, 1 die per size together with holder & wrench. Case is made from industrial injection moulded Polypropylene and has Plastazote LD45 foam in fill.
We can also make up sets to meet cutomer requirements.
BSF/UNF, BSF/UNC, UNF/BSW, UNC/BSW, Please contact us for details.
Tapping Drills BSW. 5.1mm, 6.5mm, 7.9mm, 9.3mm, 10.5mm
Tapping Drills BSF. 5.3mm, 6.8mm, 8.3mm, 9.7mm, 11.1mm
NPT Tapping Drill. 8.7mm
Tapping drills are loose with the set.
SKU:
(SET) BSF/BSW 1/4" - 1/2"
24pc set containing 1 second tap & 1 die per size together with holder & wrench. Case is made from industrial injection moulded Polypropylene and has Plastazote LD45 foam in fill.
Tapping Drills BSW. 5.1mm, 6.5mm, 7.9mm, 9.3mm, 10.5mm
Tapping Drills BSF. 5.3mm, 6.8mm, 8.3mm, 9.7mm, 11.1mm
NPT Tapping Drill. 8.7mm
Tapping drills are loose with the set.
BSW - 1/4 - 5/16 - 3/8 - 7/16 - 1/2
BSF - 1/4 - 5/16 - 3/8 - 7/16 - 1/2
NPT - 1/8 x 27
